1K-CDS-PRO

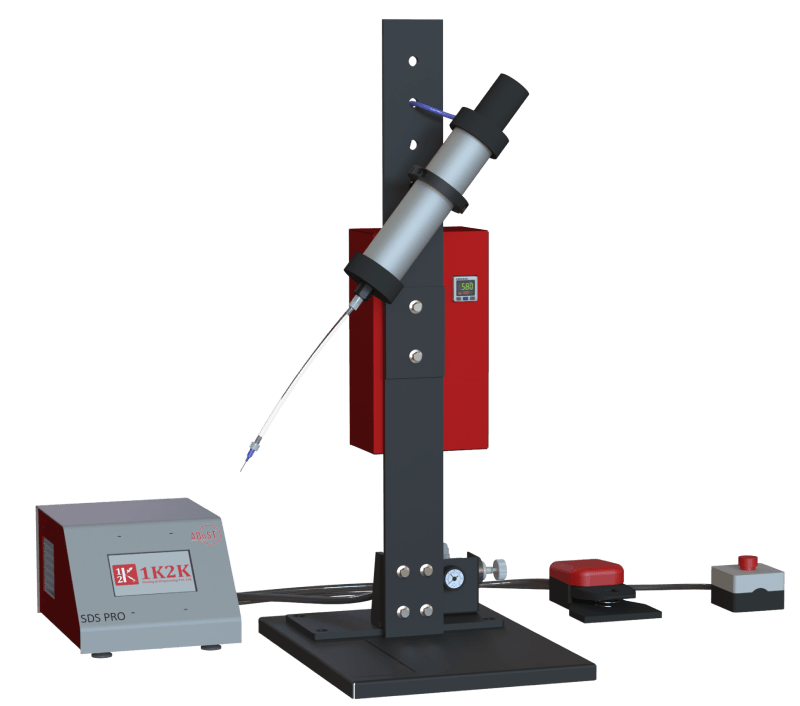

Introducing the ADoST SDS PRO, an advanced semi-automatic one component dispensing system designed and developed to apply a fixed volume of sealant without having to hold the dispenser manually. ADoST SDS PRO improves application efficiency while nearly eliminating worker fatigue. It is your solution for dispensing low to medium viscous sealants with precision and efficiency.

Particularly suitable for applications in EV Battery manufacturing and PCB assembly where continuous and precise beads need to be applied to bond, seal and encapsulate components. ADoST SDS PRO allows sealants in 300ml cartridge as well as 600ml sachet to be loaded on a tower mounted dispenser while the operator holds the dispensing tube or pen that enables enhanced maneuverability and precise application. Dispensing parameters are controlled through an advanced HMI unit that also offers purge feature to ensure the dispensing tube does not clog during lunch or shift break. ADoST SDS PRO can also be integrated with a benchtop robot for fully automating the dispensing process.

Specifications

Model Number ADoST SDS PRO
Power Supply Min:100 VAC, Nominal:230 VAC, Max 275VAC
Size (Metric) 450mmx300mmx950mm
Weight 17kg
Operating Air Pressure 3 Bar (Max.)
Ambient temperature range 10°C to +45°C
Response time 0.02s
Usage Indoor use
Minimum Dispense Size 0.020gm (Medium Viscosity)
Accuracy +/-0.006gm (Medium viscous material, low dispensing volume)
+/-0.02gm (Medium viscous material, high dispensing volume)
Recommended for Single component Adhesive
Model Number ADoST SDS PRO
Power Supply Min:100 VAC,
Nominal:230 VAC,
Max 275VAC
Size (Metric) 450mmx300mmx950mm
Weight 17kg
Operating Air Pressure 3 Bar (Max.)
Ambient temperature range 10°C to +45°C
Response time 0.02s
Usage Indoor use
Minimum Dispense Size 0.020gm (Medium Viscosity)
Accuracy +/-0.006gm (Medium viscous
material, low dispensing
volume)
+/-0.02gm (Medium viscous
material, high dispensing
volume)
Recommended for Single component Adhesive

Benefits

  • Offers both timer and manual control mode
  • Provides repeatable dose within +/- 0.005gm
    (tested with low viscous materials).
  • Minimum dispensing shot size 0.02gm.
  • Programmable up to 50 in numbers.
  • Sensor for part detection (optional).
  • Settings are password protected
  • 4.3” user-friendly digital display
  • Height Adjustment Bench top stand
  • Large foot pedal

Accessories

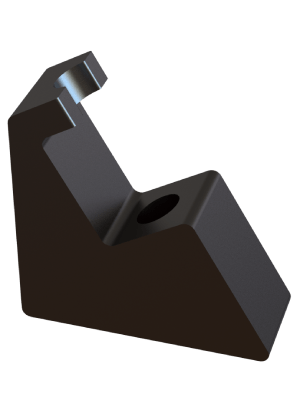

ADoST pen-stand

Pen Stand

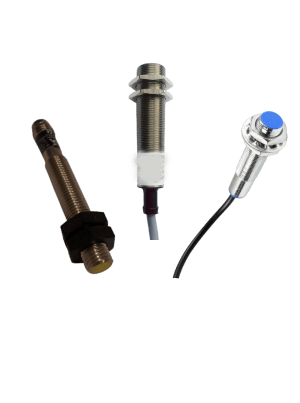

sensors

Sensor (Application Specific)

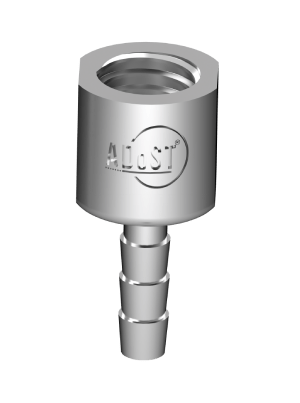

adost tube adpator

Tube adaptor

Accessories to be purchased separately

Consumables

Consumables to be purchased separately

Related Products

ADoST 1k cds

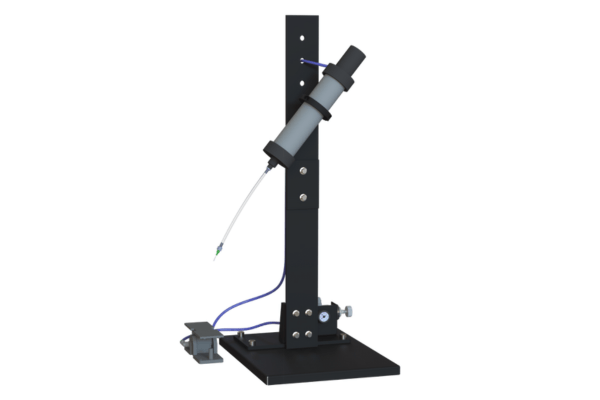

ADoST SDS
