• ADoST-CDS-pro

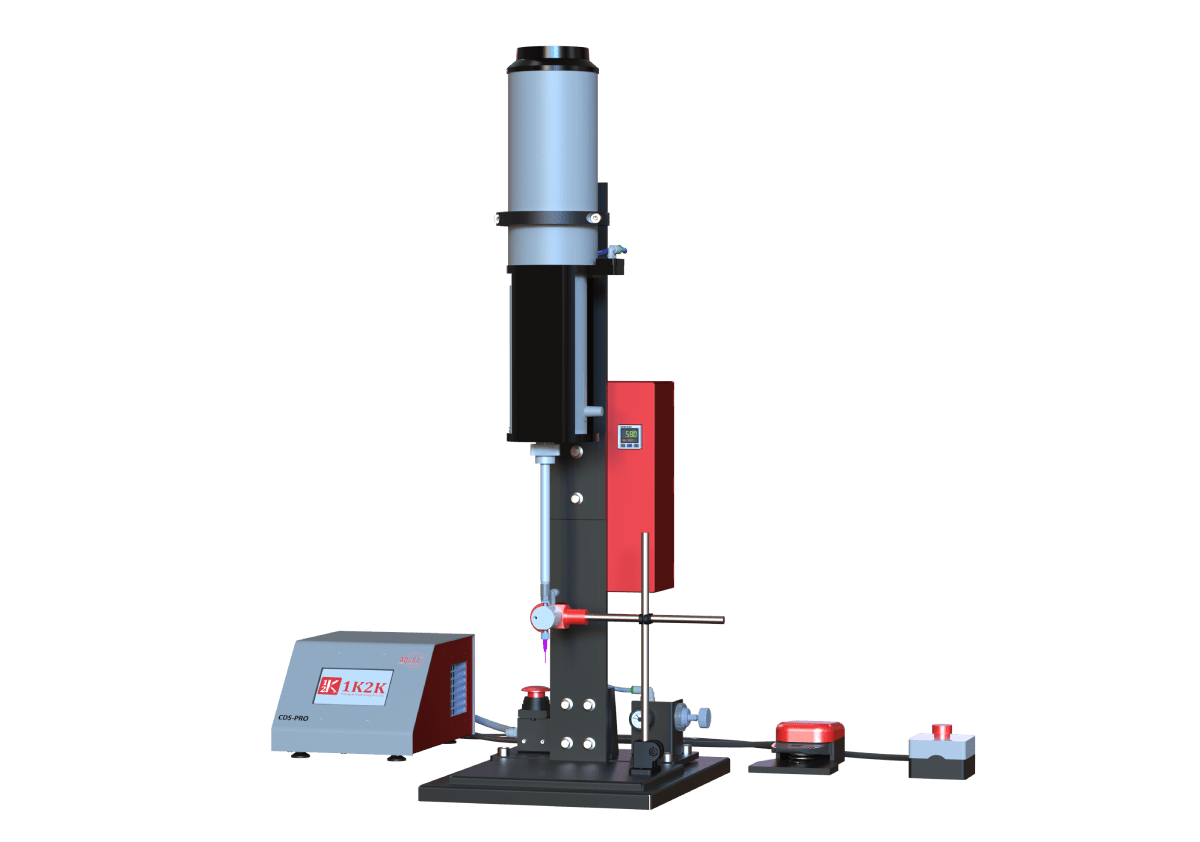

Introducing the ADoST CDS Pro, advanced two-part cartridge dispensing system engineered to elevate your adhesive dispensing experience. Designed to deliver unparalleled repeatability and packed with advanced features, the ADoST CDS Pro is your solution for dispensing low to medium viscous two-component epoxy adhesives with precision and efficiency.

The ADoST CDS Pro comes with Programmable HMI unit which offers advanced Timer + Manual mode of dispensing. You can achieve the timer based automatic dispensing of adhesive with fixed adhesive volume in a high speed production line.

Software-driven auto purge feature seamlessly integrates into your workflow, offering hassle-free operation and enhancing overall system efficiency. This innovative functionality enhances mixer lifespan and minimizes material wastage, optimizing your production process.

Specifications

Model Number ADoST-CDS-PRO
Power Supply Min:100 VAC, Nominal:230 VAC, Max 275VAC
Size (Metric) 450mmx300mmx950mm
Weight 19 Kg
Operating Air Pressure 6 Bar (Max.)
Ambient temperature range 10°C to +45°C
Response time 0.02s
Usage Indoor use
Minimum Dispense Size 0.020gm (Low Viscosity)
Accuracy +/-0.006gm (Medium viscous material, low dispensing volume)
+/-0.02gm (Medium viscous material, high dispensing volume)
Recommended for Two-component Adhesive
Compatible Pinch Valve ADoST-PV-6
Compatible Pen ADoST-MP-6-0
Model Number ADoST-CDS-PRO
Power Supply Min:100 VAC
Nominal:230 VAC
Max 275VAC
Size (Metric) 450mmx300mmx950mm
Weight 19 Kg
Operating
Air
Pressure
6 Bar (Max.)
Ambient
temperature
range
10°C to +45°C
Response
time
0.02s
Usage Indoor use
Minimum
Dispense
Size
0.020gm (Low Viscosity)
Accuracy +/-0.006gm
(Medium viscous material,
low dispensing volume)
+/-0.02gm
(Medium viscous material,
high dispensing volume)
Recommended
for
Two-component
Adhesive
Compatible
Pinch
Valve
ADoST-PV-6
Compatible Pen ADoST-MP-6-0

Benefits

  • Manual + Timer Mode
  • Purge feature
  • High Precision application
  • Programmable up to 50 different programs
  • Customizable software
  • Password protection settings
  • Consistent performance
  • Adaptability with Cartridge size
  • Versatile Formulation Options
  • Freedom to choose valve integration
  • User-friendly interface
  • Streamlined workflow integration

Accessories

ADoST pen-stand

Pen Stand

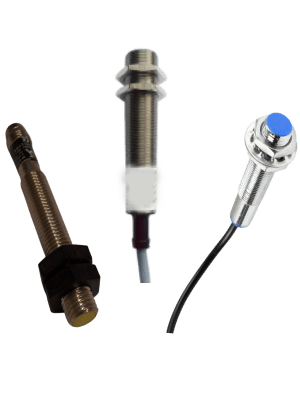

Sensor (Application Specific)

Accessories to be purchased separately

Consumables

Pinch Tube Luer barb connector

Luer barb connector
(Applicable with Pen usage)

nozzels

Nozzles

Mixer

Mixer

Consumables to be purchased separately

Application Video

ADoST CDS is designed for low to medium viscous two part adhesives.

This video demonstrates how ADoST CDS precisely dispenses low to medium viscous two part epoxy adhesive for potting and encapsulation applications from a dual cartridge system.

Related Products

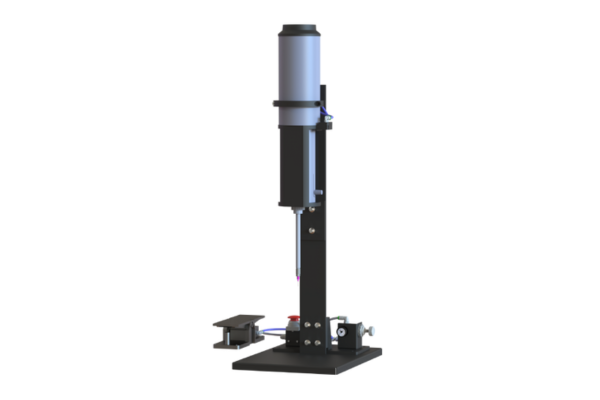

ADoST CDS
