ADoST SDS is our basic offering in sealant dispensing equipment for applying one component sealants without having to hold the dispenser manually. ADoST SDS improves application efficiency while nearly eliminating worker fatigue. It is your solution for dispensing low to medium viscous sealants with precision and efficiency.

Particularly suitable for applications in PCB assembly, EV batteries and Automotive Components where continuous and precise beads need to be applied to bond, seal and encapsulate components. ADoST SDS allows the sealants in 300ml cartridge as well as 600ml Sachet to be loaded on a tower mounted dispenser while the operator holds the dispensing tube or pen that enables enhanced maneuverability and precise application.

Specifications

Model Number ADoST-SDS
Size (Metric) 400mm x 300mm x 770mm
Weight 10 Kg
Operating Air Pressure 3 Bar (Max.)
Ambient temperature range 10°C to +45°C
Response time 0.02s (Low viscosity)
Usage Indoor use
Suitable for Adhesive Type One Component Sealants
Minimum Dispense Size 0.020gm (Medium Viscosity)

Benefits

  • Ergonomical
  • Height adjustable bench top stand.
  • Upgradable to incorporate Valve and Sensor

Accessories

ADoST pen-stand

Pen Stand

adost tube adpator

Tube adaptor

Accessories to be purchased separately

Consumables

nozzels

Nozzles

Consumables to be purchased separately

Related Products

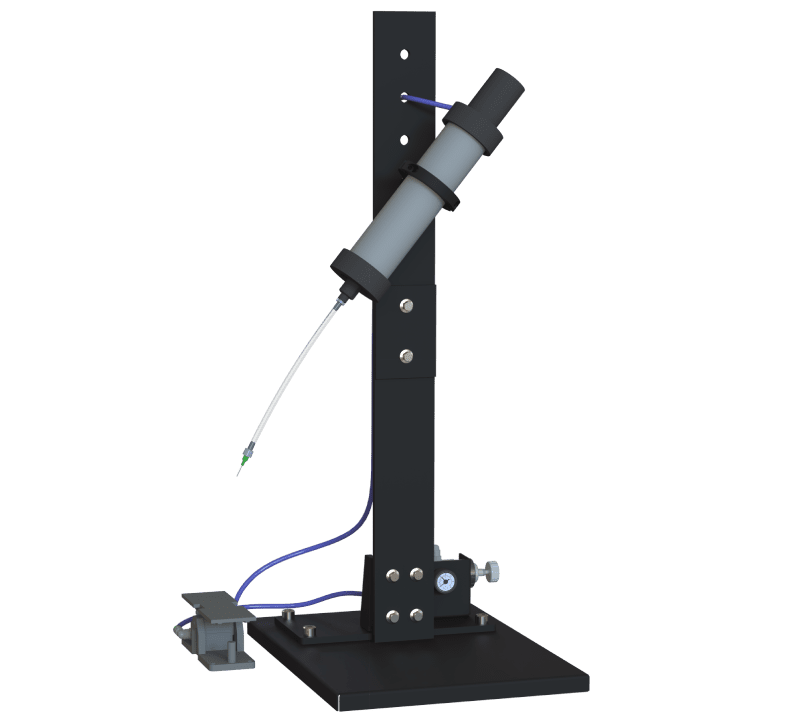

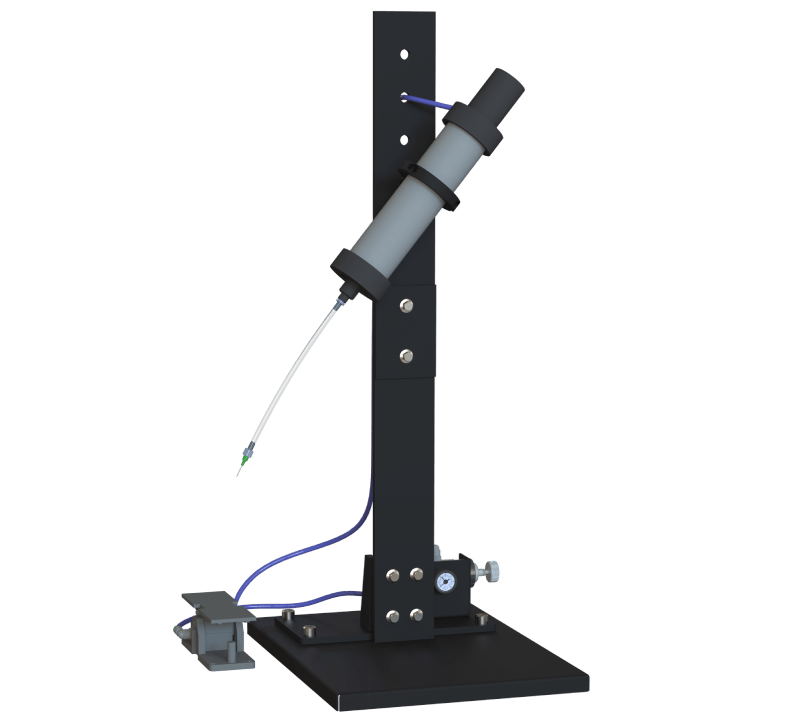

ADoST 1k CDS PRO

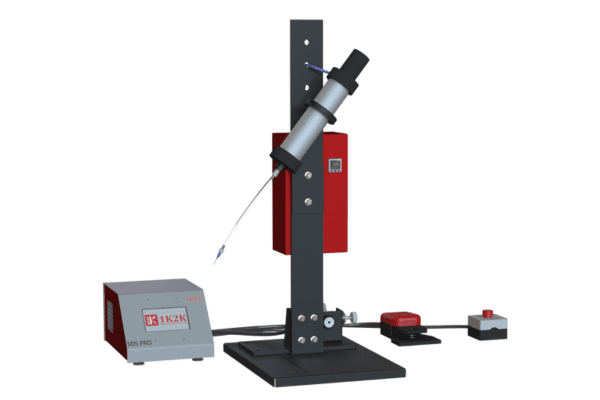

ADoST SDS PRO
