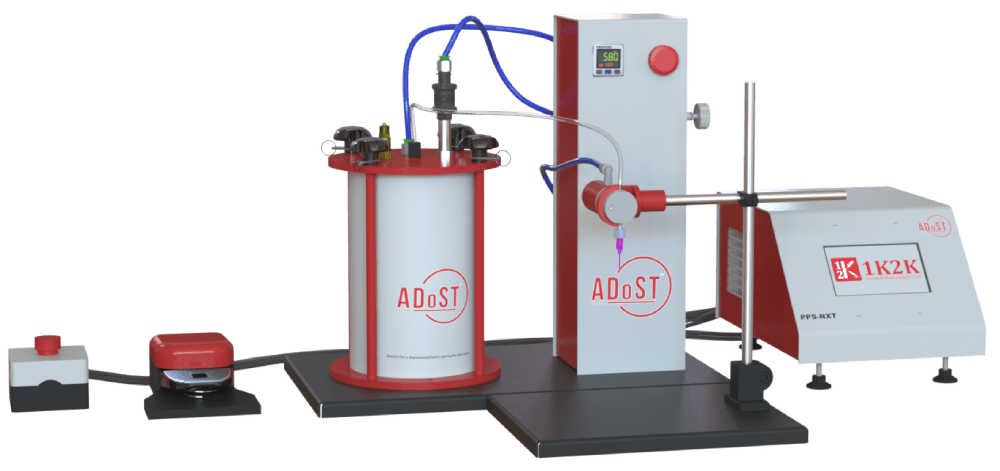

• ADoST PPS NXT

The ADoST PPS NXT is an electro pneumatic precision dispensing system designed for the application of Anaerobic, Cyanoacrylate and UV adhesives. This unit is designed to be used on high speed automotive assembly lines as well as batch production of medical devices. This advanced glue dispensing machine comes with industry leading features and can be equipped with auto part sensors for automatic dispensing operation. Adhesive dispensing can be routed directly through valve or via a hand held pen for large sized parts. It can also be integrated with benchtop robots for full scale deployment on high speed applications.

Specifications

Model no. ADoST-PPS-NXT-23-2P ADoST-PPS-NXT-46-6P
Power Supply Min:100 VAC, Nominal:230 VAC, Max 275VAC
Size (Metric) MCU (300X196X138mm), SCU (410X365X240mm)
Weight 9.7 Kg
Ambient temperature range 10°C to +45°C
Response time 0.02s
Usage Indoor Use
Operating Air Pressure 2 Bar (Max.) 6 Bar (Max.)
Minimum Dispense amount 0.018gm
Accuracy +/-0.005gm
Pinch Tube ID 2mm 4mm
Recommended for Cyanoacrylate Adhesive Anaerobic/UV Adhesive
Model no. Cyanoacrylate
Adhesive		 Anaerobic
Adhesive/
(UV) Adhesive
Power Supply Min:100 VAC
Nominal:230 VAC
Max 275VAC
Size (Metric) MCU (300X196X138mm)
SCU (410X365X240mm)
Weight 9.7 Kg
Ambient
temperature
range		 10°C to +45°C
Response
time		 0.02s
Operating Air
Pressure		 2 Bar (Max.) 6 Bar (Max.)
Minimum
Dispense
amount		 0.018gm 0.018gm
Accuracy +/-0.005gm +/-0.005gm
Pinch Tube ID 2mm 4mm
Recommended
for		 Cyanoacrylate
Adhesive		 Anaerobic/UV
Adhesive

Benefits

  • Offers both timer and manual mode
  • Provides repeatable dose within
    +/- 0.005gm (tested with low viscous materials)
  • Minimum dispensing shot size 0.007gm.
  • Programmable up to 50 in numbers.
  • Slide valve for quick charging and exhaust
  • Settings are password protected
  • 4.3” user-friendly digital display
  • Low level sensor.
  • Sensor for part detection (optional)

Variants

Model No. Description Compatible Pinch Valve Compatible Pen
ADoST-PPS-NXT-23-2P ADoST PPS-NXT designed to be used for Cyanoacrylate adhesive dispensing ADoST-PV-3 ADoST-MP-3-0
ADoST-PPS-NXT-46-6P ADoST PPS-NXT designed to be used for Anaerobic/UV adhesive dispensing ADoST-PV-6 ADoST-MP-6-0
Model No. Description Compatible
Pinch Valve		 Compatible
Pen
ADoST-PPS-NXT-23-2P ADoST PPS-NXT
designed to be
used for
Cyanoacrylate
adhesive
dispensing		 ADoST-PV-3 ADoST-MP-3-0
ADoST-PPS-NXT-46-6P ADoST PPS-NXT
designed to be
used for
Anaerobic/UV
adhesive
dispensing		 ADoST-PV-6 ADoST-MP-6-0

Accessories

ADoST pen stand

Pen

ADoST pen-stand

Pen Stand

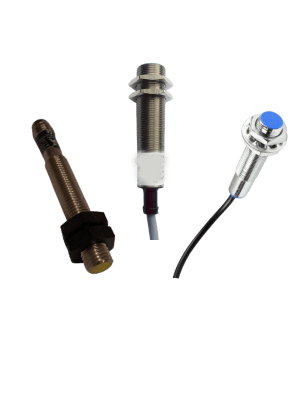

sensors

Sensor (Application Specific)

Accessories to be purchased separately

Consumables

Pinch Tube

Nozzles

Consumables to be purchased separately

Application Video

ADoST PPS NXT, a new generation Anaerobic and UV Cure adhesive dispensing system.

ADoST PPS NXT is a next generation dispensing system that digitally controls the amount of adhesive deposited on the application substrate. Digital control allows more precision and comfort and its smart technology indicates low level in the bottle for timely changeover without having to do any guess work by workmen. ADoST PPS-NXT can operate in both manual and timed mode allowing the flexibility a user needs. Not just that but this system allows user to track live information about drop sequence dispensed at any point in time and monitor changes in operating pressure, if any. Check out this video for more details.

ADoST PPS NXT Precision Cyanoacrylate Dispensing System for Automotive Control Cable Sleeve Bonding

Efficient and precise cyanoacrylate Gluing system for bonding PVC sleeves in vehicle control cable assemblies. Enhance durability, accuracy, and production efficiency in automotive manufacturing through ADoST PPS NXT
