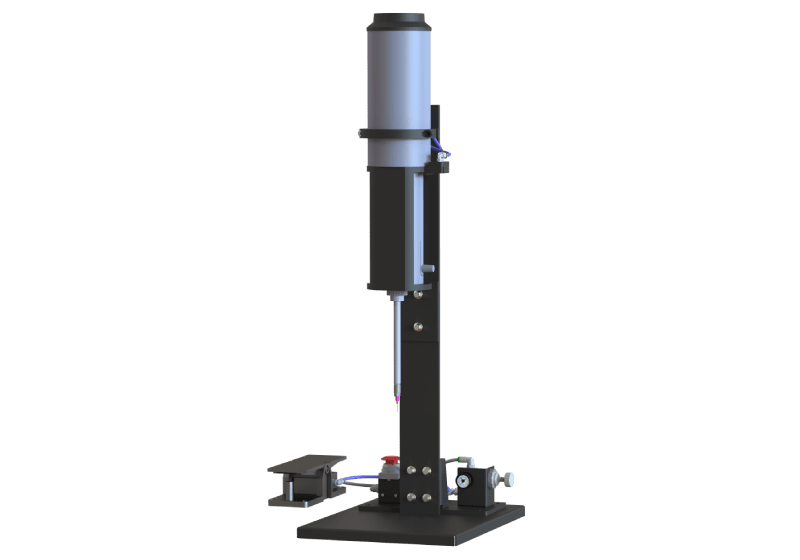

• ADoST CDS

Introducing the ADoST CDS epoxy dispensing equipment, an advanced solution for precise dispensing of medium to high viscous two-part adhesive cartridge systems in 400ml and 490ml capacities. The ADoST CDS supports mixing ratios of 1:1, 2:1, 4:1, and 10:1. Whether your application demands a valve or not, the ADoST CDS has you covered. This dispensing system is engineered for compatibility with or without a valve, offering users the freedom to choose based on epoxy viscosity and specific operational preferences.

The user-friendly footswitch mechanism of the ADoST CDS ensures precise control over adhesive dispensing. When actuated, the footswitch opens the line pressure, allowing for a smooth and controlled flow of adhesive to meet the demands of intricate projects or large-scale applications.

Specifications

Model Number ADoST-CDS
Size (Metric) 250x141x750mm
Weight 10 Kg
Operating Air Pressure 6 Bar (Max.)
Ambient temperature range 10°C to +45°C
Response time 0.02s
Usage Indoor use
Suitable for Adhesive Type Two-component Adhesive
Minimum Dispense Size 0.020gm (Medium Viscosity)

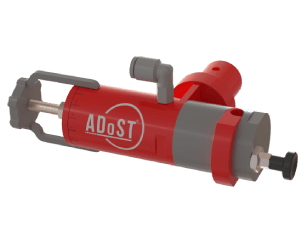

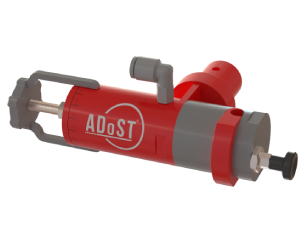

Compatible Pinch Valve ADoST-PV-6
Compatible Pen ADoST-MP-6-0
Model Number ADoST-CDS
Size (Metric) 250x141x750mm
Weight 10 Kg
Operating
Air Pressure
6 Bar (Max.)
Ambient
temperature range
10°C to +45°C
Response time 0.02s
Usage Indoor use
Suitable for
Adhesive Type
Two-component
Adhesive
Minimum Dispense Size 0.020gm
(Medium Viscosity)
Compatible
Pinch
Valve
ADoST-PV-6
Compatible
Pen
ADoST-MP-6-0

Benefits

  • Ergonomical
  • Height adjustable bench top stand.
  • Upgradable to incorporate Valve and Sensor
  • Large foot pedal

Accessories

Accessories to be purchased separately

Consumables

Pinch Tube Luer barb connector

Luer barb connector
(Applicable with Pen usage)

nozzels

Nozzles

Mixer

Static Mixer

Consumables to be purchased separately
