Non-Wetting ADoST Pinch Valve for Precise, Consistent, and Reliable Adhesive Dispensing

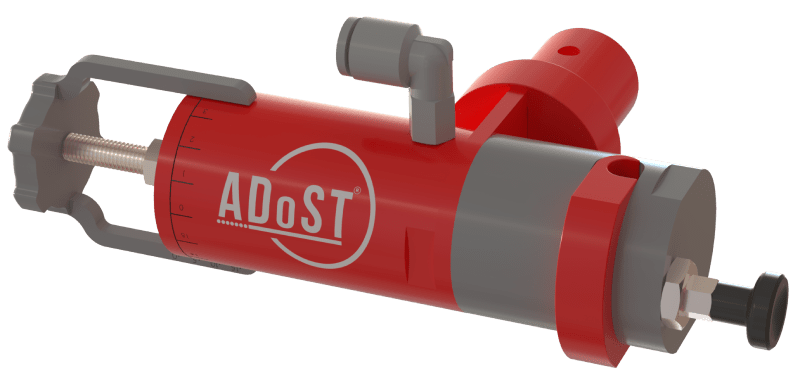

ADoST Pinch Valve

In Adhesive Dispensing, Accuracy and Consistency Matter

Adhesive dispensing is not simply about delivering material from a container to a component—it is a critical part of many precision assembly processes. Across different departments, operational challenges emerge:

  • For Production Teams: Need to maintain consistent adhesive quantity, repeatable application, and reliable operation while keeping material consumption and maintenance under control.

  • For Quality Teams: Focus on reducing variation in adhesive application, which directly affects the structural integrity and final quality of the assembly.
  • For Maintenance Teams: Face recurring challenges with adhesive build-up and curing inside dispensing components, leading to frequent valve cleaning.
  • For Plant Management: Aim to eliminate process interruptions and adhesive wastage that directly impact overall plant productivity.

The ADoST Pinch Valve is designed to address these requirements through an innovative non-wetting dispensing approach.

Challenges Solved

Working Principle

Features

Specifications

Variants

Accessories

Consumables

Compatible Adhesives

Selection Guide

Case Study

FAQ

Why Choose ADoST Pinch Valve for Adhesive Dispensing?

The ADoST Dispensing Pinch Valve is designed as a reliable glue dispensing pinch valve where controlled application, consistency, and simplified maintenance are important.

Most adhesives cure, build up, or contaminate the dispensing path depending on their chemistry and operating conditions. In conventional operations, this leads to:

  • Adhesive-related valve clogging
  • Adhesive build-up inside dispensing components
  • Inconsistent dispensing performance over time
  • Frequent cleaning, teardown, and maintenance
  • Costly production interruptions
  • Uncontrolled adhesive consumption and excess wastage

Root Cause

The Problem with Conventional
Valve Design

In conventional dispensing valves, the adhesive comes into direct contact with internal valve components and moving parts. Over time, adhesive accumulates, cures, or contaminates these mechanisms, severely degrading valve performance.

The ADoST Approach

Complete Adhesive Isolation via Pinch Valve Architecture

A pinch valve completely isolates the adhesive from the valve’s internal mechanism. The adhesive flows strictly through a replaceable dispensing tube, while the valve operates by externally pinching the tube.

Valve in closed State-No Flow
Valve in Open State- Dispensing Adhesive

Key Result

Adhesive never contacts
valve internals — ever.

By routing adhesive exclusively through a replaceable pinch tube, the ADoST Dispensing Pinch Valve removes the root cause of conventional valve degradation. The result: stable, uninterrupted dispensing over extended production runs with maintenance reduced to a simple, low-cost tube swap.

ADoST Dispensing Pinch Valve- key results

What Makes the ADoST Dispensing Pinch Valve Different?

ADoST Dispensing Pinch Valve combines a practical architecture with features designed around demanding production requirements:

Non-Wetting Design

The adhesive flows through the replaceable pinch tube without directly wetting the main valve mechanism

Benefits: Reduces direct adhesive exposure to the valve mechanism and lowers the risk of curing within internal components.
Operational Impact: Maintenance: No exposure to main mechanism. | Production: Highly stable, uninterrupted operation.

Replaceable Pinch Tube

The pinch tube serves as the primary adhesive-contacting component and acts as an easily replaceable consumable.

Benefits: When the tube reaches its replacement interval, maintenance simply swaps the tube rather than servicing the entire valve.
Operational Impact: Maintenance cost: Quick and practical; plan around low-cost consumable replacement rather than full valve overhauls.

Fast 0.02-Second Response

Engineered with high-speed pneumatic/mechanical actuation for ultra-fast response.

Benefits: Rapid valve actuation supports precise start/stop control during high-frequency dispensing cycles.
Operational Impact: Production: Ideal for automated high-speed production lines requiring fast repeat dispensing.

Application-Specific Tube Configuration

Available in standard 2 mm and 4 mm pinch tube inner diameters (IDs).

Benefits: Allows matching the fluid flow path directly to the specific adhesive chemistry and viscosity.

Designed for Repeatable Dispensing

The ADoST Pinch Valve functions as a precision adhesive dispensing valve, supporting controlled fluid delivery across repeated, high-volume production cycles. It integrates seamlessly with suitable ADoST pressure-time dispensing systems, including ADoST PPS-PRO, ADoST PPS-NXT, and ADoST PPS-PLS.

Supports controlled fluid delivery across repeated, high-volume production cycles.

Benefits: Integrates seamlessly with ADoST pressure-time dispensing systems (e.g., PPS-PRO, PPS-NXT, PPS-PLS).
Operational Impact: Accuracy: Achieves minimum dispense size down to 0.007 g and repeatability of ±0.005 g for low-viscosity materials.

From Engineering Design to Business Benefit

ADoST Feature What It Means Stakeholder Benefit
Non-Wetting Design Adhesive-contacting path is separated from main valve mechanism Reduced adhesive-related maintenance & downtime
Replaceable Pinch Tube Tube is the primary adhesive-contacting consumable Easier, faster, and lower-cost maintenance
0.02 s Response Fast valve actuation and crisp fluid cut-off Better control of repeated, high-speed dispensing cycles
System Integration Integrates with suitable ADoST systems & automated lines Seamless production-line integration & high repeatability

Technical Specifications of ADoST Dispensing Pinch Valve

Model Number ADoST-PV-X3-XX ADoST-PV-X6-XX
Size (Metric) 36.5mm dia. x 136mm Length
Weight 170 gm
Operating Air Pressure 4 to 6 Bar
Material Aluminum
Maximum Operating Frequency 100 cycles /minute
Ambient temperature range 5°C to +45°C
Response time 0.02s
Usage Indoor use
Adhesive Low Viscous Low/Medium Viscous

Variants

Model No. Description Compatible Tube
ADoST-PV-X3-XX Pinch Valve designed for Pinch Tube with OD 3mm ADoST-PT-23-1C-SE-0-5
ADoST-PT-23-1C-SE-1-0
ADoST-PT-23-1C-SE-1-5
ADoST-PT-23-1C-SE-2-0
ADoST-PV-X6-XX Pinch Valve designed for Pinch Tube with OD 6mm ADoST-PT-46-2C-0-04

ADoST-PT-46-2C-0-2
ADoST-PT-46-2C-0-4
ADoST-PT-46-2C-0-6
ADoST-PT-46-2C-0-8

ADoST-PT-46-2C-B-0-2
ADoST-PT-46-2C-B-0-4
ADoST-PT-46-2C-B-0-6
ADoST-PT-46-2C-B-0-8

ADoST-PT-46-1C-SE-0-6
ADoST-PT-46-1C-SE-0-8

ADoST-PT-46-1C-SE-B-0-6
ADoST-PT-46-1C-SE-B-0-8
ADoST-PT-68-56-1C-0-22

Consumables for ADoST Dispensing Pinch Valve

Pinch Tube

Luer Lock

nozzels

Nozzles

Which Adhesives Can Be Dispensed with ADoST Pinch Valve?

  • Cyanoacrylate Adhesives (Fast-Curing / Instant Adhesives): Ideal for controlled dispensing applications where small, precise adhesive quantities and high consistency are mandatory.

  • Anaerobic Adhesives: Perfect for thread-locking, retaining compounds, and thread sealing applications.

  • UV-Curing Adhesives: Suitable for UV-curing dispensing applications, including medical device assembly and optical component bonding.

  • 2K Epoxy Adhesives: Select 2K epoxy applications can be accommodated for potting, encapsulation, and structural bonding.

Note: Adhesive compatibility depends on specific chemistry, viscosity, pinch tube material, and operating conditions.

When to Consider an ADoST Dispensing Pinch Valve

You should consider transitioning to an ADoST Dispensing Pinch Valve if your facility experiences any of the following:

  • Adhesive is frequently curing or building up inside existing dispensing valves.
  • Valve cleaning and teardowns have become routine, time-consuming maintenance activities.
  • Dispensing accuracy and flow rates drift after prolonged operational periods.
  • Adhesive contamination is repeatedly affecting valve internal mechanics.
  • You want the fluid-contacting component to be a fast, low-cost replaceable tube.
  • You require highly repeatable, controlled dispensing for automated production.
  • You want a practical, low-maintenance approach to fluid delivery.

Real Applications — See ADoST Pinch Valve in Action

Cyanoacrylate Adhesive Dispensing — Automotive Engine Hose Assembly

See how ADoST Dispensing Pinch Valve solved recurring cyanoacrylate adhesive clogging and inconsistent dispensing for an automotive engine hose manufacturer. After successful production trials, the customer deployed the ADoST Pinch Valve across 10 production lines.

[Read the Full Case Study →]

Permabond Thread Sealant Dispensing — CNG Component Manufacturing

See how ADoST Pinch Valve eliminated recurring valve clogging and maintenance issues in Permabond A131 thread sealant dispensing. The customer achieved 20% less adhesive wastage and standardized the solution across 9 assembly lines.

[Read the Full Case Study →]

Frequently asked questions

Product Overview

The ADoST Dispensing Pinch Valve controls adhesive flow by mechanically pinching a flexible tube through which the adhesive flows. This design keeps the adhesive isolated from the main valve mechanism and supports controlled, repeatable dispensing.

The adhesive flows through a dedicated pinch tube. The valve compresses (pinches) the tube to stop fluid flow and releases it to allow precise dispensing.

No. The adhesive remains entirely within the pinch tube, effectively separating the fluid path from the main valve mechanism.

Adhesive Compatibility & Clogging

The tube-based design eliminates adhesive curing within the valve body itself. Actual dispensing performance depends on the adhesive chemistry and operating conditions, but maintenance is greatly simplified.

The ADoST Dispensing Pinch Valve can be configured for different industrial adhesive dispensing requirements. Suitable materials include Cyanoacrylates (CA), Anaerobics, UV-curing adhesives, and selected 2K Epoxies.

Maintenance & Operation

There is no universal interval. Replacement schedules depend on adhesive chemistry, tube material durability, fluid compatibility, and total operational cycles.

The main advantage is that the fluid-contacting component is a low-cost, easily replaceable tube rather than a complex internal valve assembly.

Production & Automation

Yes. The valve integrates seamlessly into automated ADoST dispensing platforms as well as standard pressure-time dispensing systems.
