Optimize Retaining Compound on Shaft, Bearing and Spline : Without Operator Dependency
If your production involves bonding bearings onto shafts, securing couplings, retaining gears, or sealing splines with retaining compounds such as Loctite 638, Loctite 641, Loctite 603 or Loxeal 85-21 — the consistency of how that adhesive is applied on the outer diameter determines the quality of every assembly that leaves your line.
Manual retaining compound application on cylindrical parts — whether by brush, dropper, or squeeze bottle — cannot guarantee uniform coverage across the full contact surface. Coverage varies between operators. The length of application varies. The amount applied varies. And the result shows up as inconsistent bond strength, rework, and premature failures on components that were never properly bonded to begin with.

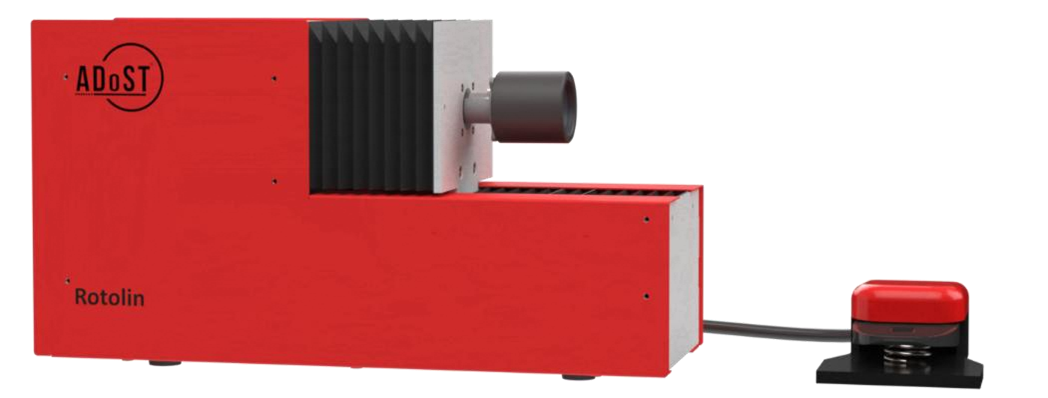

The ADoST Rotolin is a semi-automatic retaining compound dispensing machine that solves this. It applies adhesive in a controlled spiral or circular bead across the outer diameter of cylindrical components — combining simultaneous rotational and linear movement to achieve complete, uniform surface coverage on every part, every cycle, regardless of operator.
The Rotolin is an auxiliary machine — it works by integrating with ADoST’s full range of dispensers. The dispenser controls how much adhesive is released per cycle. The Rotolin controls where it goes. Together, they deliver a retaining compound dispensing process that is precise, repeatable, and waste-free.
Who Needs a Retaining Compound Dispensing Machine?
The Rotolin is for production and quality engineers in industries where adhesive application on cylindrical parts is a high-frequency, fixed-process operation — and where manual application is creating quality variation they cannot eliminate.
You will find this machine relevant if:
The Real Problems ADoST Rotolin Machine Solves
Problem 1
Uneven Coverage Across the Full Contact Length
When retaining compound is applied manually on the outer diameter of a shaft or bearing, the coverage along the contact length is never uniform. The operator applies more at the start, less at the end, and misses areas entirely on longer components. The ADoST Rotolin applies adhesive in a continuous spiral pattern along the full travel length — combining rotation with linear movement so that the entire outer diameter receives uniform coverage without gaps or overlaps.
Problem 2
Output Varies Between Operators and Shifts
Manual application of Loctite 638 or similar retaining compounds on cylindrical parts depends entirely on operator technique — how long they apply, how much pressure they use, how steady their hand is. No two operators apply the same way, and no single operator applies the same way across a full shift. The Rotolin eliminates this dependency. Once set up, every component receives the same application regardless of who operates the machine.
Problem 3
Material Wastage From Dripping and Overspill
Brush or dropper application of retaining compounds leads to material ending up on jigs, fixtures, benches, and floors rather than on the component. Loctite 638, Loctite 641, and Loctite 603 are not inexpensive adhesives — wastage across hundreds of components per shift adds up significantly. The Rotolin dispenses adhesive directly onto the rotating component surface in a controlled bead, with the dispensing cycle stopping precisely when the travel length is completed. Material stays on the part.
Problem 4
Operator Exposure in Repetitive Manual Application
Repeated manual handling of anaerobic retaining compounds creates sustained operator exposure to adhesive fumes and direct skin contact during application. This is a process safety concern that intensifies with production volume. The Rotolin creates distance between the operator and the adhesive application point — the operator places the component, the machine applies the adhesive, and the operator removes the component. Contact is minimized.
Problem 5
No Traceability on How Much Was Applied
In manual retaining compound application, there is no record of how much adhesive was used per component. When a field failure occurs, there is no data to confirm whether the application was correct. When the Rotolin is integrated with a compatible ADoST dispenser — such as the ADoST PPS-NXT — the dispenser tracks shot count and dispensing volume, giving you process data that manual application can never provide.
How the ADoST Rotolin Works
The Rotolin is a dual-motion platform. When a cylindrical component is placed on the machine, it simultaneously rotates the component on its own axis while moving it linearly along the dispensing nozzle. This dual action — rotational and linear movement happening together — produces a continuous spiral pattern of adhesive across the full outer diameter of the component.
The rotation speed and linear travel speed are independently adjustable, giving the operator direct control over the pitch of the spiral pattern and the density of coverage. For a close-pitch spiral with maximum surface coverage, the linear speed is reduced relative to rotational speed. For a wider pitch, the linear speed is increased. Both can be tuned to the specific diameter, length, and adhesive viscosity of the component being processed.
The Rotolin does not dispense adhesive itself — it works in combination with an ADoST dispenser, which controls the volume and timing of each adhesive release. The nozzle from the connected dispenser is positioned at the start of the component. As the Rotolin begins its dual motion, the dispenser releases adhesive in a controlled, continuous bead that follows the spiral path created by the movement. When the travel length is complete, the dispensing cycle ends.
The result is a consistent, fully covered, waste-free retaining compound application on every component — in a fraction of the time manual application requires.
Spiral adhesive application by Rotoline ensures an even spread during assembly
Features & Benefits of ADoST Rotolin
| Feature | What It Means for Your Production |
|---|---|
| Dual rotational and linear movement | Produces a continuous spiral or circular pattern across the full contact length — uniform coverage on every component. |
| Independently adjustable rotation and linear speed | Tune the spiral pitch and coverage density for each component diameter, length, and adhesive viscosity — without tools. |
| Max OD 100mm — handles a wide component range | Covers shafts, bearings, splines, couplings, and rotors from small precision components up to 100mm outer diameter. |
| Max travel length 100mm | Applies adhesive across the full bonding length in one continuous cycle — no repositioning required. |
| 245 RPM max rotational speed | Handles high-speed retaining compound dispensing on production lines without becoming the cycle-time bottleneck. |
| Integrates with ADoST PPS-NXT, PPS-PRO, CDS-PRO, SDS-PRO | One Rotolin platform works with your existing ADoST dispenser — no separate fluid control system needed |
| Semi-automatic electrically operated | Consistent, repeatable operation with minimal operator input — place the component, press start, remove the component. |
| 230V standard power supply | No special electrical infrastructure. Plug in and run on any standard Indian power supply. |
| Operating temperature -20°C to +80°C | Suitable for production environments from air-conditioned assembly rooms to warm shop floors. |
| Nearly eliminates adhesive wastage | Adhesive goes onto the component, not onto fixtures and floors. Material saving on Loctite 638, 641 and 603 adds up quickly at production volume. |
Technical Specifications — ADoST Rotolin
| Parameter | ADoST CY-23-2P (Cyanoacrylate) |
|---|---|
| Model Number | ADoST-Rotolin |
| Application Type | Applying anaerobic retaining compound on cylindrical parts |
| Adhesive Type | Anaerobic Retaining Compound (Loctite 638, Loctite 641, Loctite 603 and equivalent grades) |
| Dispensing Pattern | Continuous Bead — Circular or Spiral |
| Object Outer Diameter | Maximum 100mm |
| Machine Dimensions | 450 × 152 × 245mm |
| Movement | Linear and Rotational (simultaneous) |
| Max Rotational Speed | 245 RPM |
| Max Linear Speed | 20mm/sec |
| Maximum Travel Length | 100mm |
| Net Weight | 10 Kg |
| Power Supply | 230 VAC (Nominal) — standard Indian power supply |
| Operational Method | Semi-automatic, electrically operated |
| Operating Temperature | -20°C to +80°C |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Storage Condition | Clean, cool and dry (25°C) |
| Usage | Indoor Use |
| Compatible Dispensing Machines | ADoST PPS-NXT | ADoST PPS-PRO | ADoST CDS-PRO | ADoST SDS-PRO |
Compatible Dispensers — What Adhesives Can the Rotolin Apply?
The Rotolin pairs with ADoST dispensers that control the adhesive volume and timing. The Rotolin controls the application path. The dispenser controls the fluid. Together they form a complete retaining compound dispensing machine system.
| ADoST Dispenser | Adhesive Type | Common Grades Used with Rotolin |
|---|---|---|
| ADoST PPS-NXT (AN variant) | Anaerobic Retaining Compound | Loctite 638, Loctite 641, Loctite 603 |
| ADoST PPS-PRO | Anaerobic Retaining Compound | Loctite 638, Loctite 641, Loctite 603 |
| ADoST CDS-PRO | Two-Part Epoxy | Structural epoxy on cylindrical joints |
| ADoST SDS-PRO | Silicone / PU Sealant | Sealing on cylindrical component OD |
The most common pairing in retaining compound applications is the Rotolin with the ADoST PPS-NXT (AN variant) — which combines volumetric precision dispensing with the Rotolin’s controlled application path for the highest level of retaining compound process control. Not sure which combination fits your application? Book a free technical consultation and we will confirm the right setup for your component and adhesive.
Where the ADoST Rotolin Is Used — Application Areas
The Rotolin is deployed wherever a retaining compound or adhesive needs to be applied uniformly on the outer diameter of a cylindrical component before press-fit, shrink-fit, or slip-fit assembly.
How the Rotolin Compares to Manual Retaining Compound Application
| Manual Application | ADoST Rotolin | |
|---|---|---|
| Coverage uniformity | Varies — operator-dependent. Gaps and overlaps common on longer shafts. | Consistent spiral or circular pattern across full travel length. Every component. |
| Output consistency | Varies between operators and shifts. | Fixed by machine settings. Same output regardless of operator. |
| Adhesive wastage | High — dripping, overspill, excess on fixtures. | Near-zero — adhesive dispensed directly onto rotating component surface. |
| Operator exposure | Direct and sustained — repeated skin and fume contact | Minimized — operator places and removes component. Machine applies. |
| Process traceability | None — no data on amount applied per component. | Full — when paired with ADoST PPS-NXT, shot count and volume are tracked. |
| Multi-component flexibility | Requires operator re-training for different diameters and lengths. | Adjustable speed settings accommodate different component geometries. |
