Pressure Pot Dispensing System for Anaerobic and Cyanoacrylate adhesive

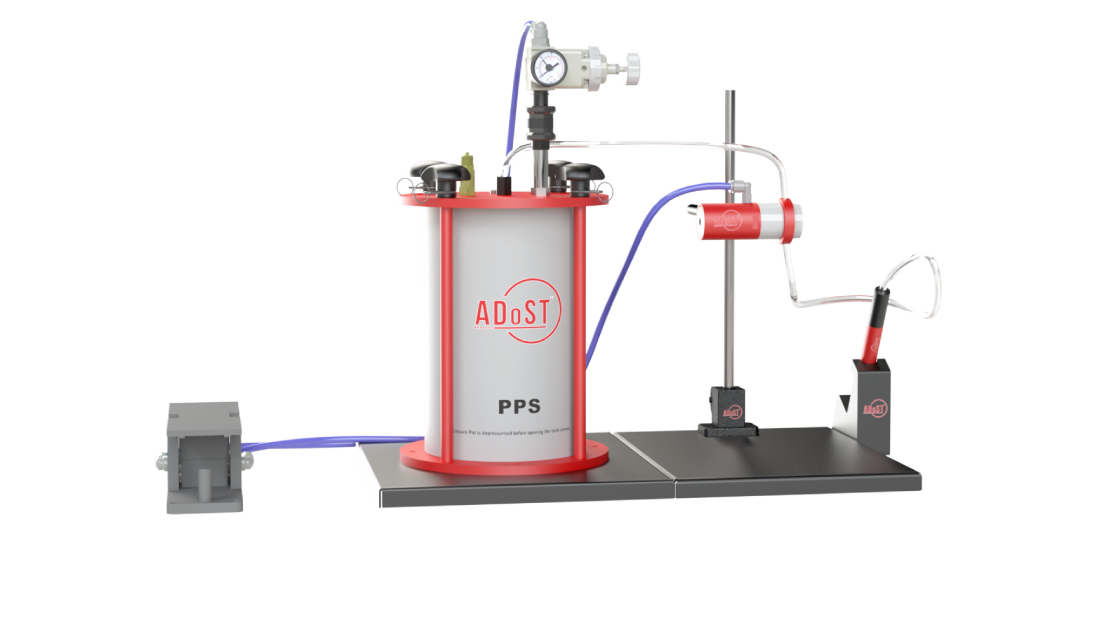

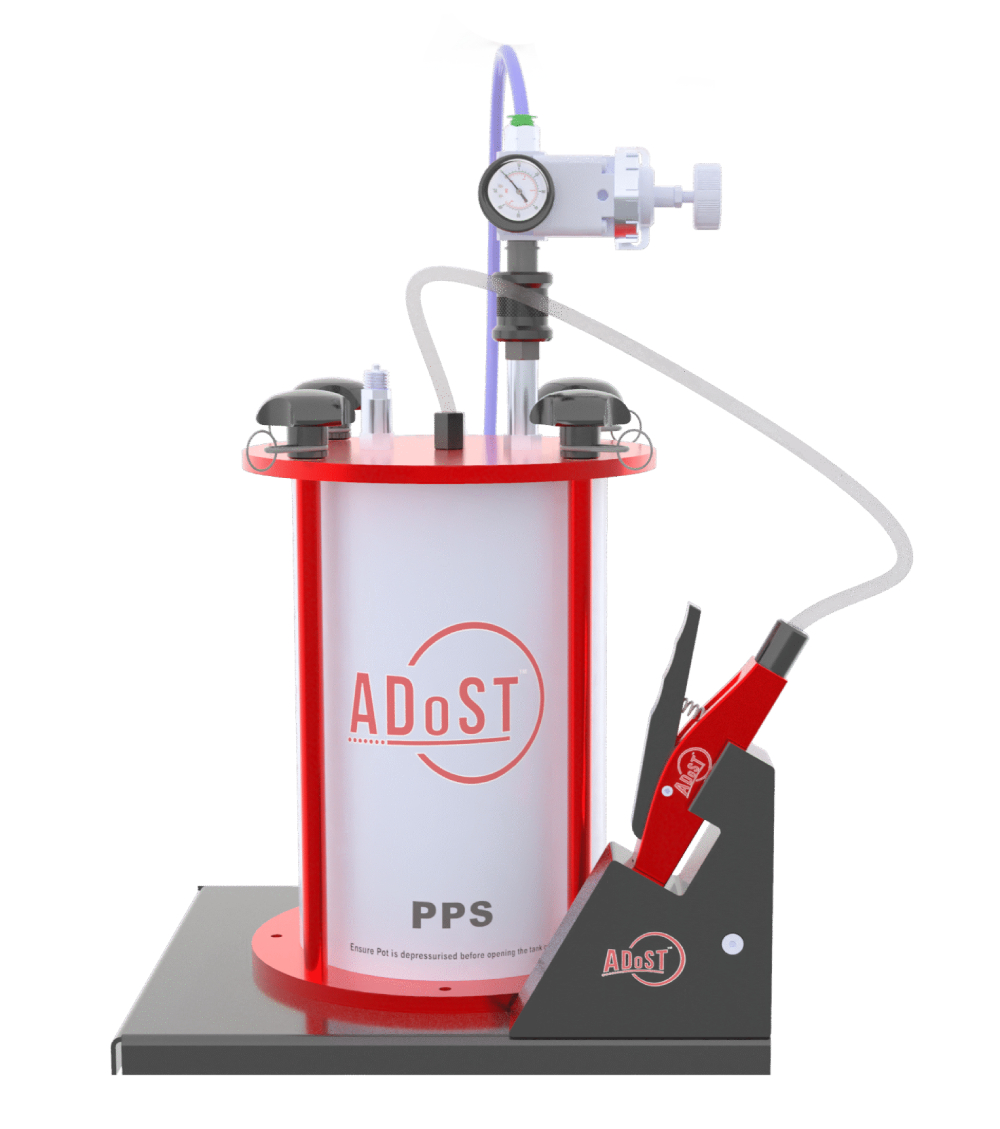

The ADoST PPS is a foot switch operated pressure pot dispensing system designed for the application of Threadlockers, Retaining Compound, FIP Anaerobic Gaskets and UV adhesives. This is an ideal dispensing equipment that provides low cost of operation for applications where adhesive must be applied by hand due to job complexities. ADoST PPS enables users to shift to larger adhesive bottles thereby reducing material cost and eliminating frequent change overs. This unit comes packaged with a wide range of dispensing nozzles that enables dispensing of micro thin to wider beads.

Specifications

Model Number	ADoST-PPS-23-2P	ADoST-PPS-46-6P
Power Supply	Min:100 VAC, Nominal:230 VAC, Max 275VAC
Size (Metric)	226X250X456mm
Weight	8kg
Operating temperature range	10°C to +45°C
Response time	0.02s
Usage	Indoor use
Operating Air Pressure	2 Bar (Max.)	6 Bar (Max.)
Minimum Dispense amount	0.018gm
Pinch Tube ID	2mm	4mm
Recommended for	Cyanoacrylate Adhesive	Anaerobic/UV Adhesive

Model Number	ADoST-PPS-23-2P	ADoST-PPS-46-6P
Power Supply	Min:100 VAC Nominal:230 VAC Max 275VAC
Size (Metric)	226X250X456mm
Weight	8kg
Operating temperature range	10°C to +45°C
Response time	0.02s
Usage	Indoor use
Operating Air Pressure	2 Bar (Max.)	6 Bar (Max.)
Minimum Dispense amount	0.018gm
Accuracy	+/-0.005gm
Pinch Tube ID	2mm	4mm
Recommended for	Cyanoacrylate Adhesive	Anaerobic/UV Adhesive

Benefits

Better dispensing control than squeeze bottles
Less frequent changeovers
Slide valve for quick charging and exhaust

Variants

Model No.	Description	Compatible Pinch Valve	Compatible Pen
ADoST-PPS-23-2P	ADoST PPS designed to be used for Cyanoacrylate adhesive dispensing	ADoST-PV-3	ADoST-MP-3-0
ADoST-PPS-46-6P	ADoST PPS designed to be used for Anaerobic/UV adhesive dispensing	ADoST-PV-6	ADoST-MP-6-0

Model No.	Description	Compatible Pinch Valve	Compatible Pen
ADoST-PPS-23-2P	ADoST PPS designed to be used for Cyanoacrylate adhesive dispensing	ADoST-PV-3	ADoST-MP-3-0
ADoST-PPS-46-6P	ADoST PPS designed to be used for Anaerobic/UV adhesive dispensing	ADoST-PV-6	ADoST-MP-6-0
