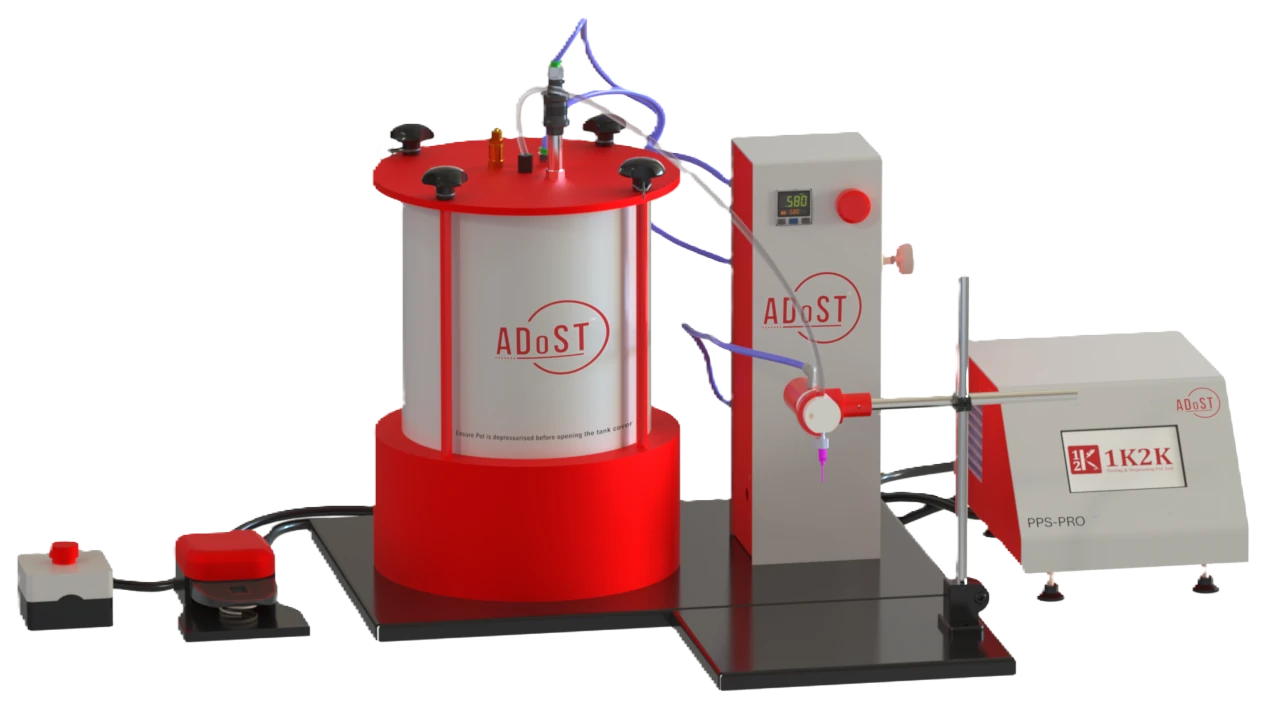

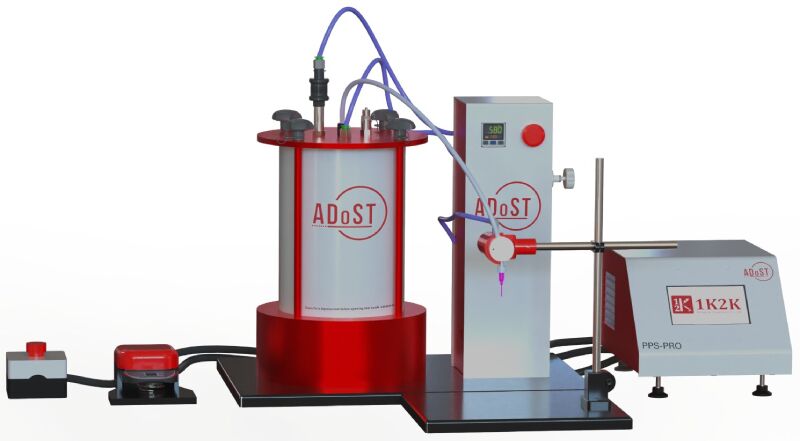

ADoST PPS-PRO semi automatic adhesive dispensing system for anaerobic adhesives

ADoST PPS-PRO is an electro-pneumatically operated semi-automatic pressure-time system designed and developed to apply fixed volume of adhesive in a high-speed assembly line. ADoST PPS-PRO offers the industry leading repeatability and advanced features in dispensing single component adhesives. The system operates in both manual and timed modes, offering the flexibility to meet varying user needs. The volume of adhesive to be dispensed can be preset by adjusting the input pressure and dispense time. It includes a high performing noncontact low-level indicator for timely bottle changeovers, drop counter and operator lock-out features that enhances digital control and reduces manual intervention leading to little or no manual errors.

TDS

Manual

Specifications

Model no.	ADoST-PPS-PRO-CY-23-2P	ADoST-PPS-PRO-AN-46-6P	ADoST-PPS-PRO-UV-46-6P
Power Supply	Min:100 VAC, Nominal:230 VAC, Max 275VAC
Size (Metric)	MCU (300X196X138mm), SCU (500X453X350mm)
Weight	18 Kg
Ambient temperature range	10°C to +45°C
Response time	0.02s
Usage	Indoor Use
Operating Air Pressure	2 Bar (Max.)	6 Bar (Max.)
Minimum Dispense amount	0.007gm (low viscous)	0.018gm (medium viscous)
Accuracy	+/-0.005gm
Pinch Tube ID	2mm	4mm
Recommended for	Cyanoacrylate Adhesive	Anaerobic Adhesive	UV Adhesive

Model no.	ADoST-PPS-PRO -CY-23-2P	ADoST-PPS-PRO -AN-46-6P	ADoST-PPS-PRO -UV-46-6P
Power Supply	Min:100 VAC, Nominal:230 VAC, Max 275VAC
Size (Metric)	MCU (300X196X138mm), SCU (500X453X350mm)
Weight	18 Kg
Ambient temperature range	10°C to +45°C
Response time	0.02s
Operating Air Pressure	2 Bar (Max.)	6 Bar (Max.)
Minimum Dispense amount	0.007gm (low viscous)	0.018gm (medium viscous)
Accuracy	+/-0.005gm	+/-0.005gm
Pinch Tube ID	2mm	4mm
Recommended for	Cyanoacrylate Adhesive	Anaerobic Adhesive	UV Adhesive

Benefits

Offers both timer and manual mode
Provides repeatable dose within +/- 0.005gm (tested with low viscous materials)
Minimum dispensing shot size 0.007gm.
Programmable up to 50 in numbers.
Low level indicator.
Slide valve for quick charging and exhaust.
Sensor for part detection (optional).
Settings are password protected.
4.3” user-friendly digital display.
